70900274

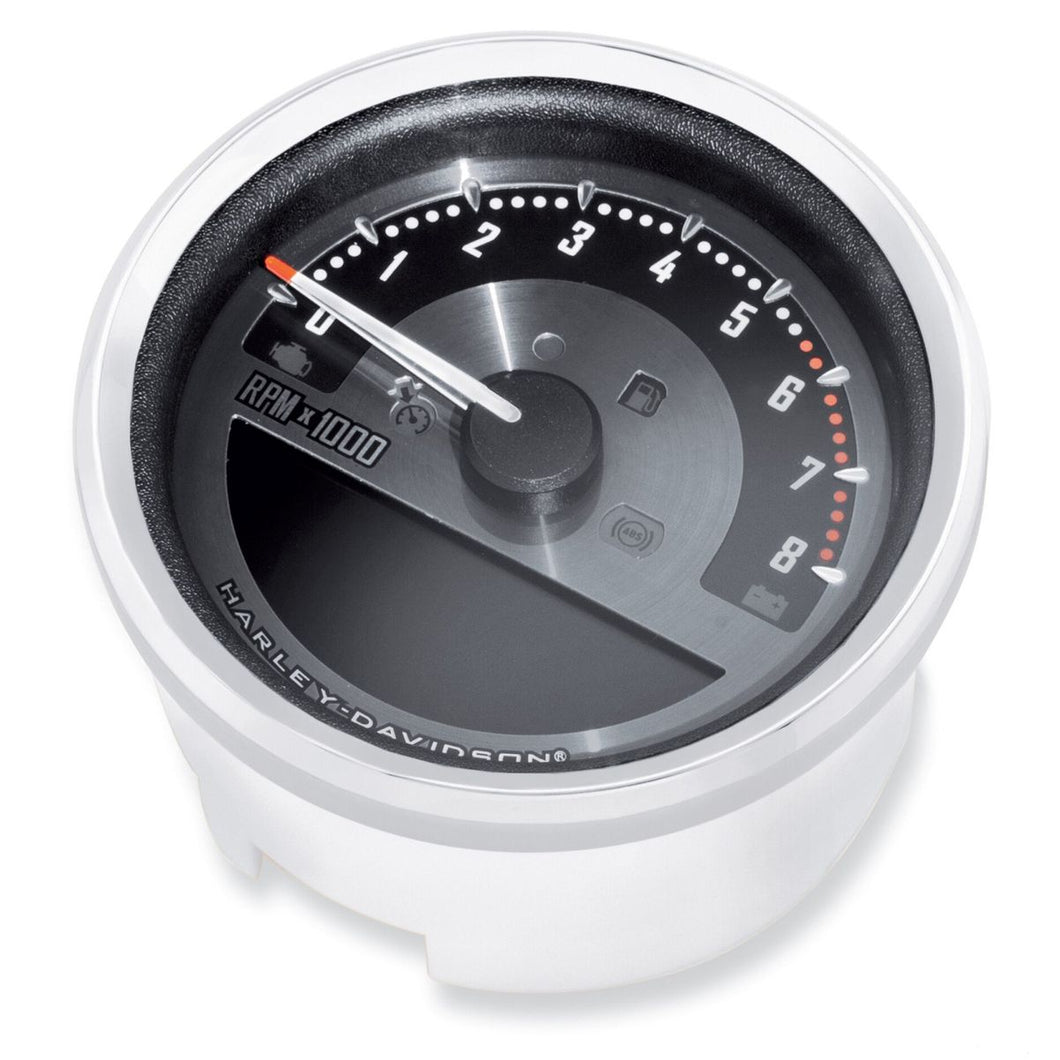

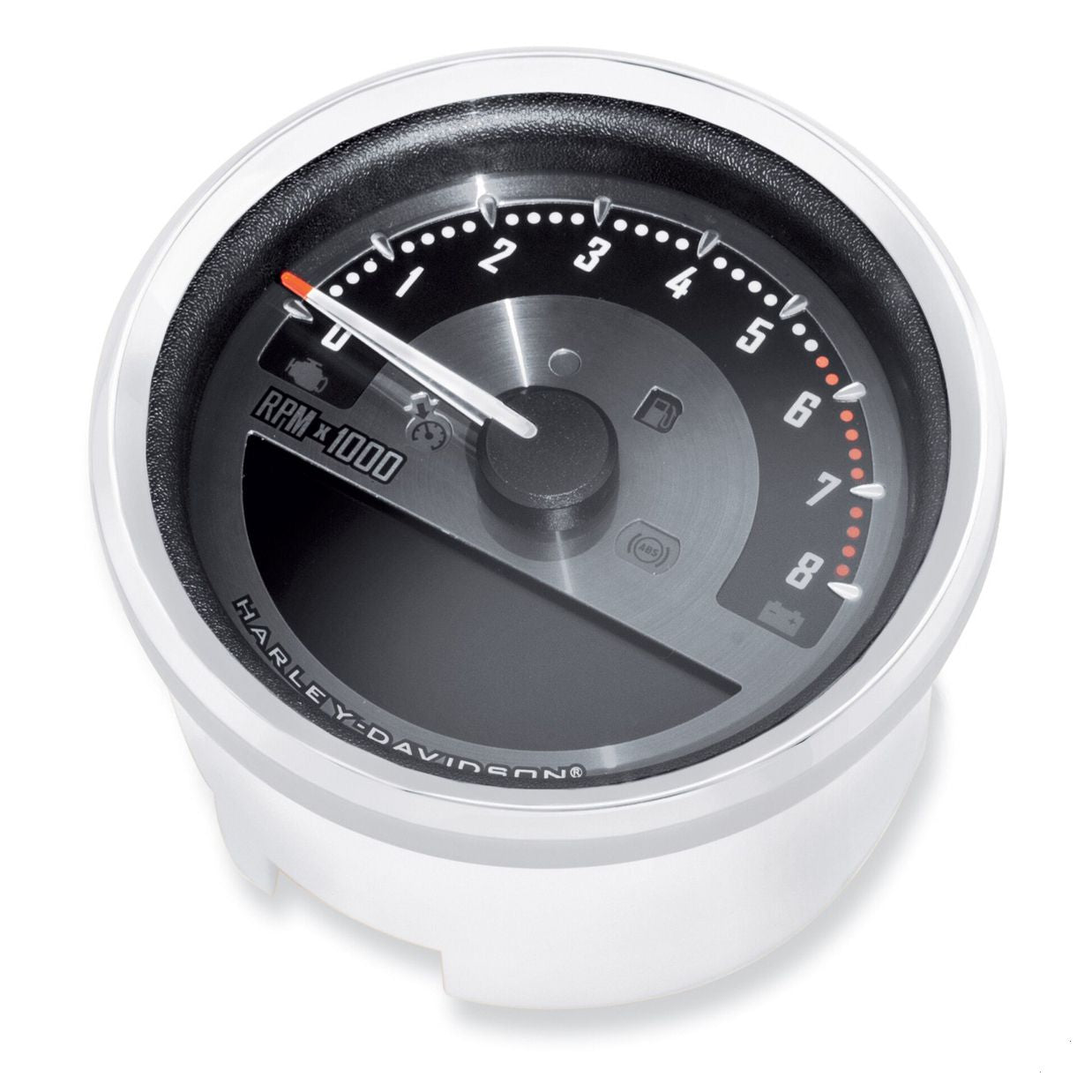

Allows you to monitor engine speed, fuel level and gear position without adding additional handlebar-mounted gauges.
Spun Aluminum Dial , MPH/km/h , Worldwide Models
Unit mounts in the stock dash opening and is a direct plug-in installation Backlit gauge includes a large LCD (liquid crystal display) information screen that displays odometer/tripmeter data , miles-to-empty readings ,an easy-to-read segmented fuel display ,a gear position indicator and clock
Features push-button adjustable backlighting with over 600 color tone options allowing the rider to adjust pointer , LCD and backlighting colors to match any paint scheme or viewing preference
Digital speed reading can be easily toggled between MPH and kph to simplify cross-border travel
Mileage reinstatement resides in the vehicle ECM so initial mileage will be uploaded at the time of installation
FITMENT INFORMATION
Worldwide Models. Fits '04-'13 XL (except XR , XL50 and '04-'08 XL1200R) , '04-'11 Dyna models with 4" speedometer and '08-'10 FXCW and FXCWC models. '07-'13 XL models require separate purchase of Fuel Sensor Kit P/N 61200008A to make use of the fuel level and range function. Does not fit XL883 models equipped with Screamin' Eagle 1200cc Stage I Conversion Kit P/N 29784-07 and 30003-10.</p>
For 7" Big Twin speedo/tacho
for later Twincam see 74775-11C
for early Twincam see 70900071A / 70900072A
